Body Equipment -- Repair M4 (2 Of 2) (G82 & G83)
>>
51 45 Trim Panel, Instrument Panel
>>
51 45 371 Replace the decorative strip on the dashboard, left (M4 2021-2023)
>>
Installing the left ventilation grille
Installing the left ventilation grille

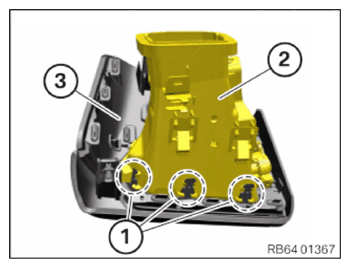

Place the ventilation grille (2) on the decorative strip (3) and position it correctly.
Engage the detents (1) at the ventilation grille (2).
Courtesy of BMW OF NORTH AMERICA, INC.

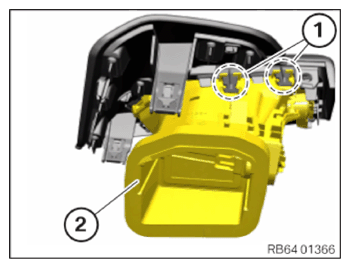

Engage the detents (1) at the ventilation grille (2).
Courtesy of BMW OF NORTH AMERICA, INC.
