Removing the A-pillar trim panel

NOTE: Description is for left component only. Procedure on the right side is identical.

Removing the hands-free microphone

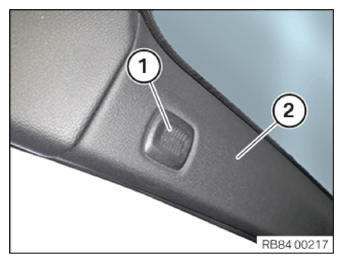

Remove the hands-free microphone (1) from the A-pillar trim panel (2) with special tool 0 493 681 (64 1 020) .

Courtesy of BMW OF NORTH AMERICA, INC.

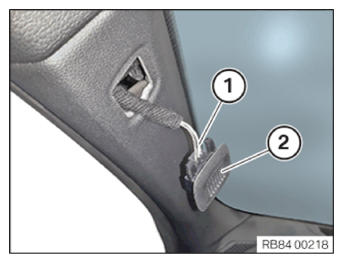

Disconnect the plug connection (1) and remove the hands-free microphone (2).

Courtesy of BMW OF NORTH AMERICA, INC.

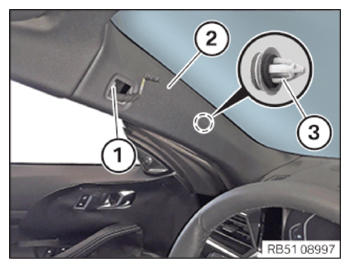

Loosen screw (1).
Unclip the A-pillar trim panel (2) at the clip (3) and feed out towards the top.

Courtesy of BMW OF NORTH AMERICA, INC.
