Install A-pillar trim panel
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: 72 00 SAFETY REGULATIONS ON HANDLING COMPONENTS WITH GAS GENERATORS .
NOTE:
RISK OF DAMAGE
Damage to the head airbag.
Improper use of a tool when removing the trim panel may damage the head airbag.
Damage to the head airbag.
Improper use of a tool when removing the trim panel may damage the head airbag.
- Do not use sharp-edged tools when removing the trim panel.
Check

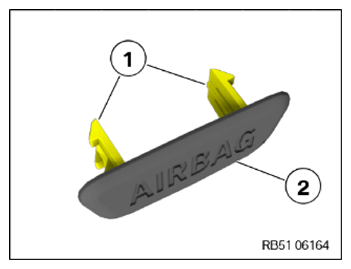

- Check the snap-in lug (1) of the cover (2) for damage.
Result
» Snap-in lug is damaged.
Measure
- Replace cover.
Check

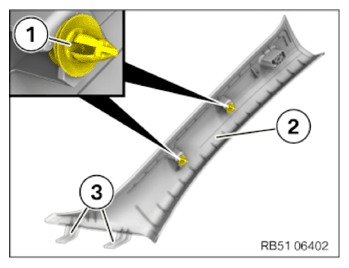

- Check the clips (1) for damage and replace if necessary.
- Check guides (3) for damage.
Result
» The guide is damaged.
Measure
- Replace the A-pillar trim panel.

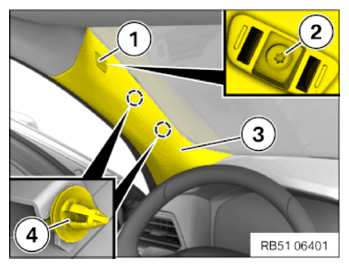

- Insert the A-pillar trim panel (3) downwards and clip in with the clips (4).
- Tighten down screw (2).TIGHTENING TORQUE SPECIFICATIONS
A-pillar trim panel to body Sheet metal screw 4.8x38 Tightening torque 2.6 Nm - Clip in the cover (1).
