Replacing the module bracket on the front door

WARNING: Working on 12 V electrical system.
Risk of short circuits! Risk of fire!

Make sure that there is no charger connected to the jump start terminal in the engine compartment.
Detach battery ground lead from battery.
For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.

NOTE: Description is for left component only. Procedure on the right side is identical.

Preliminary work

Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
Refer to REMOVING FRONT DOOR TRIM PANEL .
Refer to REMOVING THE MODULE BRACKET FROM THE FRONT DOOR .

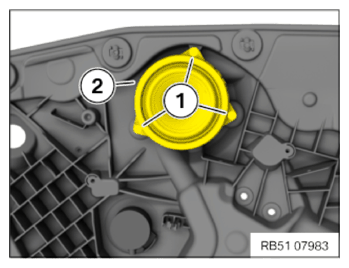

Loosen screws (1).
Remove the speaker (2).

Courtesy of BMW OF NORTH AMERICA, INC.

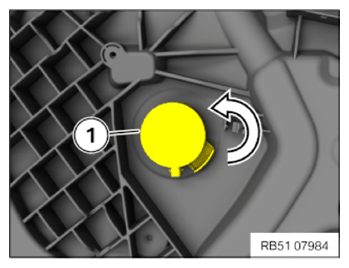

Turn the sensor (1) in arrow direction and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the module bracket.
Parts: Module bracket
Position the sensor (1) and turn it in arrow direction and lock it.

Courtesy of BMW OF NORTH AMERICA, INC.
Position the speaker (2) and tighten the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE MODULE BRACKET ON THE FRONT DOOR .
Refer to INSTALLING FRONT DOOR TRIM PANEL .
Refer to CONNECTING ALL BATTERY GROUND LEADS .
Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
