Installing the power electric windows of the front door

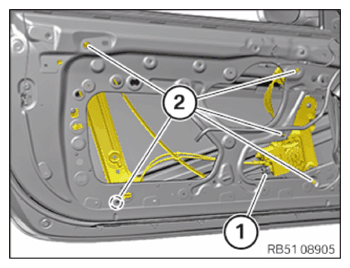

• Guide the power electric windows into door and position correctly.
• Tighten nuts (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Power electric windows to inner door panel
  M6	Tightening Torque	9.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (1) and lock.

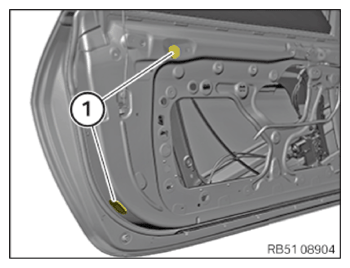

• Install plug (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING FRONT DOOR WINDOW GLASS .
• Refer to INSTALLING THE MODULE BRACKET ON THE FRONT DOOR .
• Refer to INSTALLING FRONT DOOR TRIM PANEL .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
• Refer to ADJUSTING DOOR WINDOW GLASS .
• Refer to INSTALLING OUTER WINDOW CHANNEL STRIP .
