Installing front door window glass

• Insert door window glass front (3) from the top.

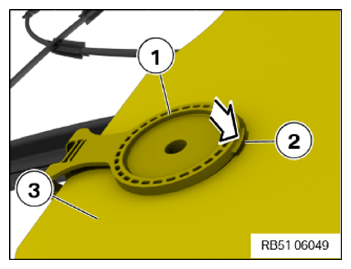

• Press the holder (1) on the lug (2) in arrow direction and lock it in place.

  Courtesy of BMW OF NORTH AMERICA, INC.

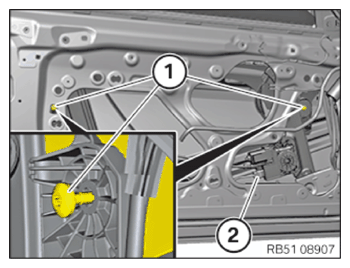

• Screw in the screws (1) and tighten them.

  Counter support multi-tooth nuts of the power window while doing so.

  TIGHTENING TORQUE SPECIFICATIONS



  Door window glass to power electric windows
  Screw	Tightening torque	0.25 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (2) and lock.

Follow-up work

• Refer to INSTALLING THE MODULE BRACKET ON THE FRONT DOOR .
• Refer to INSTALLING FRONT DOOR TRIM PANEL .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
• Refer to ADJUSTING DOOR WINDOW GLASS .
• Refer to INSTALLING OUTER WINDOW CHANNEL STRIP .
