Installing the control unit holder

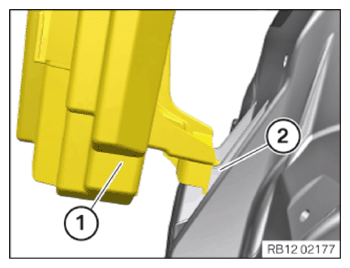

- Make sure that the control unit bracket (1) is inserted below correctly into the mount (2).

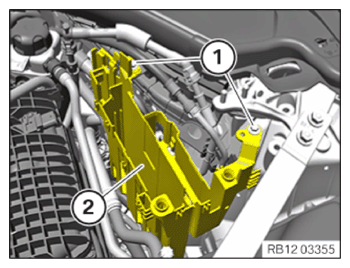

- Feed in the control unit holder (2) and install.
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Control unit bracket at the shock tower | ||
|---|---|---|
| Hexagon screw | tightening torque | 8 Nm |

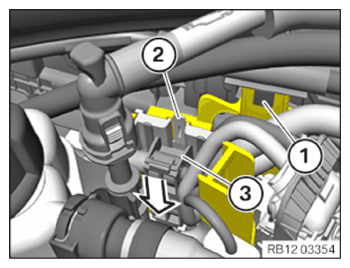

- Insert the cable bracket (3) in the arrow direction and install it.
The locks (2) must engage audibly.

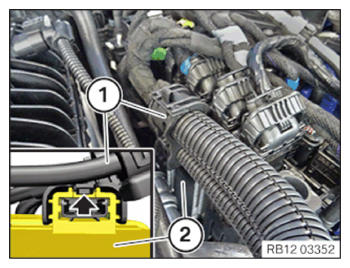

- Secure the clamp (1).
- Connect the cable clip (1) with the control unit holder (2) and lock it.
The lock (arrow) must engage audibly.

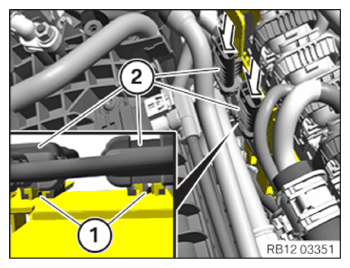

- Feed in and install the connector (2).
The locks (1) must engage audibly.

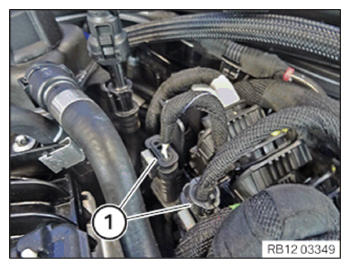

- Connect connectors (1) and lock.
- The connectors (1) must engage audibly.
- Secure clamp (arrow).

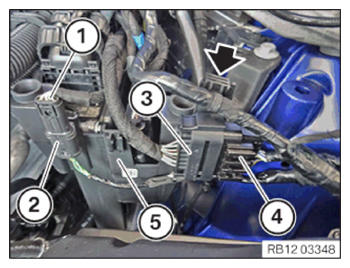

- Feed in and install the connector (4) on the control unit bracket (5).
The connector (4) must engage audibly.
- Connect connectors (3) and lock.
The connector (3) must engage audibly.
- Feed in and install the connector (2) on the control unit bracket (5).
The connector (2) must engage audibly.
- Connect connectors (1) and lock.
The connector (1) must engage audibly.
Follow-up work
- Refer to PARTIALLY INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
- Refer to INSTALLING THE DME CONTROL UNIT .
- Refer to INSTALLING THE COVER FOR THE DME CONTROL UNIT .
- Refer to INSTALLING THE STRUT BRACE .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
