Checking/Adding to the oil level in the manual transmission (GS6L55TZ)
CAUTION:
Materials harmful to health
.
Contact with fluids harmful to health!
Contact with fluids harmful to health!
- Note and follow safety instructions on containers.
- Conduct all work in appropriate personal protective equipment only.
- Check/add the transmission oil:

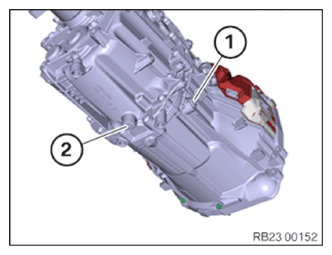

- Undo oil filler plug (1).
- Pour in gear oil until overflowing.
- Screw in oil filler plug (1).
TECHNICAL DATA SPECIFICATIONManual transmission gear oil capacity max. 1.6 l TIGHTENING TORQUE SPECIFICATIONSOil drain plug/oil filler plug Hexagon socket Tightening torque 43 Nm
