Fasten the output shaft on the wheel bearing

NOTE: TECHNICAL INFORMATION
The installation note for front gearing must be observed at all times.

Replace the collar screw (1) and compression spring (2) .
Parts: Collar screw and compression spring
Note installation position of compression spring (2) .
Keep the collar screw (1) and the front gearings of the wheel bearing and the output shaft clean and free of grease.

Courtesy of BMW OF NORTH AMERICA, INC.

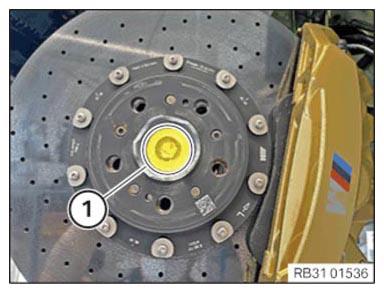

Hand-tighten the collar screw (1) with the compression spring.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
The front gearing of the wheel bearing and output shaft must be installed in an interlocking position (tooth-in-tooth).
Ensure positive locking by mutual twisting of the wheel bearing (1) and the output shaft (2) .
Press brake pedal.

Tighten the collar screw.

TIGHTENING TORQUE SPECIFICATIONS

Output shaft to wheel bearing
M16 Replace collar screw and spring.	Joining torque	210 Nm
	Angle of rotation	90°

Courtesy of BMW OF NORTH AMERICA, INC.
