Securing the anti-roll bar link on the left and right to the anti-roll bar
NOTE:
Perform the steps on the right and left side.

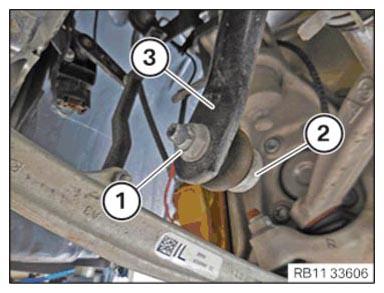

- Feed in and position the anti-roll bar link (2) on the left on the anti-roll bar (3) .
- Replace nut (1)
.
Parts: Nut
- Tighten nut (1) .
NOTE:
Counter-hold at the Torx socket.
TIGHTENING TORQUE SPECIFICATIONS
| Front anti-roll bar link to anti-roll bar/spring strut | ||
| M10 Replace nut. |
tightening torque | 56 Nm |

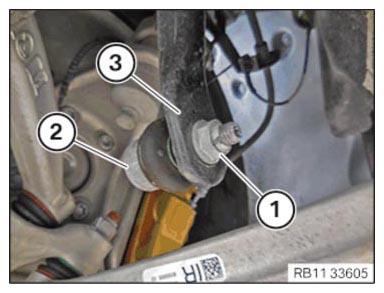

- Feed in and position the anti-roll bar link (2) on the right on the anti-roll bar (3) .
- Replace nut (1)
.
Parts: Nut
- Tighten nut (1) .
NOTE:
Counter-hold at the Torx socket.
TIGHTENING TORQUE SPECIFICATIONS
| Front anti-roll bar link to anti-roll bar/spring strut | ||
| M10 Replace nut. |
tightening torque | 56 Nm |
NOTE:
Perform the steps on the right and left side.
Securing the anti-roll bar link to the anti-roll bar

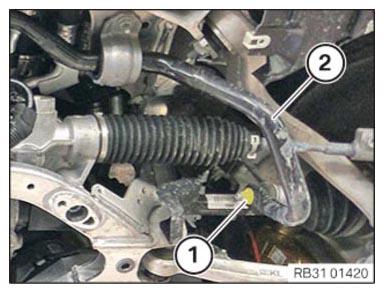

- Position the anti-roll bar link on the anti-roll bar.
- Replace nut (1)
.
Parts: Nut
- Tighten nut (1) . If necessary, counter support at the Torx socket.
TIGHTENING TORQUE SPECIFICATIONS
| Front anti-roll bar link to anti-roll bar/spring strut | ||
| M10 Replace nut. |
tightening torque | 56 Nm |
NOTE:
Perform the steps on the right and left side.
Securing the anti-roll bar link to the anti-roll bar

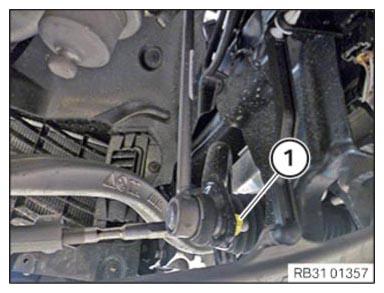

- Position the anti-roll bar link on the anti-roll bar (2) .
- Replace nut (1)
.
Parts: Nut
- Tighten nut (1) . If necessary, counter support at the Torx socket.
TIGHTENING TORQUE SPECIFICATIONS
| Front anti-roll bar link to anti-roll bar/spring strut | ||
| M10 Replace nut. |
tightening torque | 56 Nm |
NOTE:
Perform the steps on the right and left side.
Fastening the anti-roll bar link to the anti-roll bar

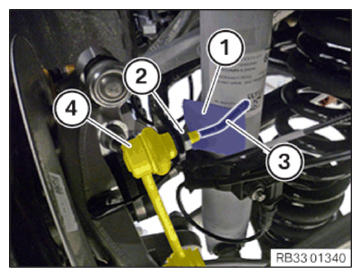

- Position the anti-roll bar link (4) on the anti-roll bar.
- Protect the shock absorber from damage with a cloth (1) .
- Replace nut (2)
.
Parts: Nut
- Tighten nut (2) . Counter support with a wrench (3) with Torx socket.
TIGHTENING TORQUE SPECIFICATIONS
| Rear anti-roll bar link on anti-roll bar | ||
| M10 Replace nut. |
Tightening torque | 56 Nm |
