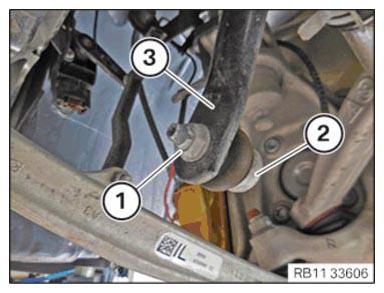

Loosening the anti-roll bar link on the left and right from the anti-roll bar

NOTE: Perform the steps on the right and left side.

Loosen nut (1) .
NOTE: Counter-hold at the Torx socket.
Feed out the anti-roll bar link (2) on the left at the antiroll bar (3) and set aside.

Courtesy of BMW OF NORTH AMERICA, INC.

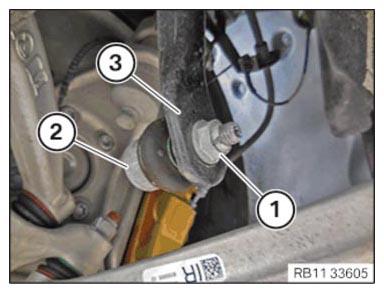

Loosen nut (1) .

NOTE: Counter-hold at the Torx socket.

Feed out the anti-roll bar link (2) on the right at the anti-roll bar (3) and set aside.

G15383828

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the right and left side.

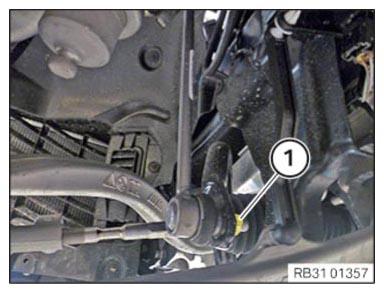

Loosening the anti-roll bar link from the anti-roll bar

Release nut (1) . If necessary, counter support at the Torx socket.
Release the anti-roll bar link from the anti-roll bar.

G15383941

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the right and left side.

Loosening the anti-roll bar link from the anti-roll bar

Release nut (1) . If necessary, counter support at the Torx socket.
Release the anti-roll bar link from the anti-roll bar (2) .

G14994760

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the right and left side.

Loosening the anti-roll bar link from the anti-roll bar

Protect the shock absorber from damage with a cloth (1) .
Release nut (2) . Counter support with a wrench (3) with Torx socket.
Release the anti-roll bar link (4) from the anti-roll bar.

G14905322

Courtesy of BMW OF NORTH AMERICA, INC.
