Installing the cover in the top right rear part of the engine compartment

Install the cover (3) .
Mount the expanding rivets (2) .
Install and close lid (1) .

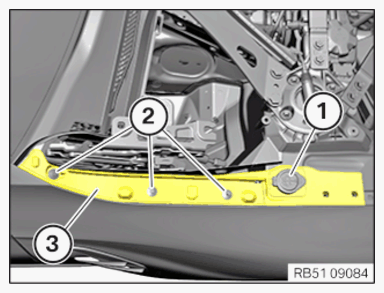

G14994642

Courtesy of BMW OF NORTH AMERICA, INC.
