Install the cover of the steering assembly on the left and right
NOTE:
Description is for left component only. Procedure on the right side is identical.

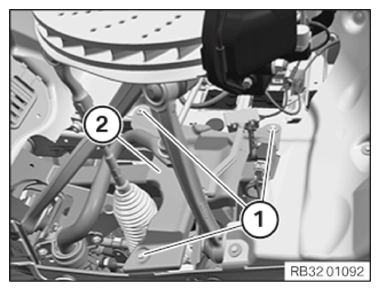

Install the cover of the steering assembly
- Position cover (2)
.
- Tighten the screws (1)
.
TIGHTENING TORQUE SPECIFICATIONS
| Cover, steering unit |
| screw |
Tightening torque |
3 Nm |
