Installing chain tensioner

• Drain the oil chamber in the chain tensioner when reusing the chain tensioner.

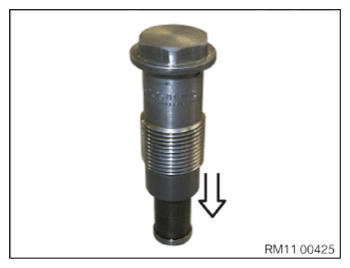

• Place the chain tensioner on a level support, slowly compress in the arrow direction and relieve it.
• Catch and dispose of emerging engine oil.
• Repeat process twice.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the sealing sleeve (1).

  Parts:  Sealing sleeve

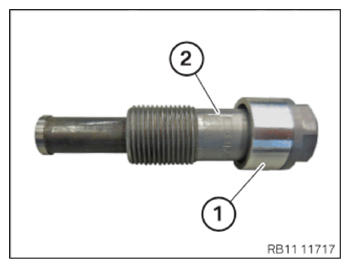

• Guide in and install the sealing sleeve (1) on the chain tensioner (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

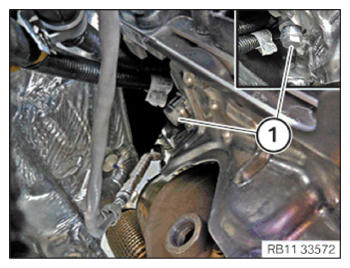

• Guide in and install the chain tensioner (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

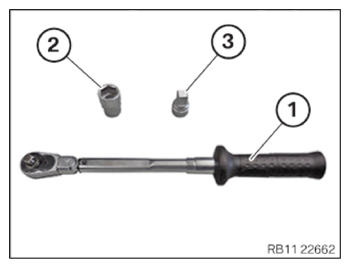

• Prepare the commercially available tool.

  Number	Description
  1	Torque wrench
  2	Wrench socket set SW19
  3	Reduction from 1/2 inch to 3/8 inch

  Courtesy of BMW OF NORTH AMERICA, INC.

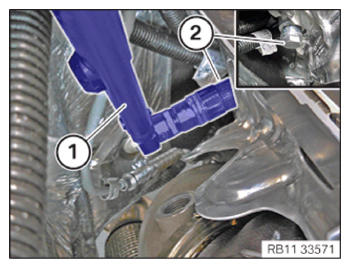

• Tighten chain tensioner (2) with commercially available tools (1).

Courtesy of BMW OF NORTH AMERICA, INC.

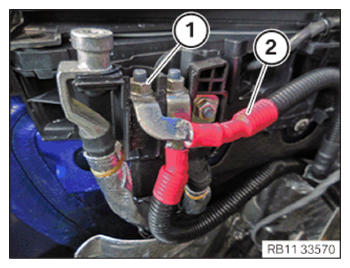

• Feed in and position the positive battery cable (2).
• Tighten nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

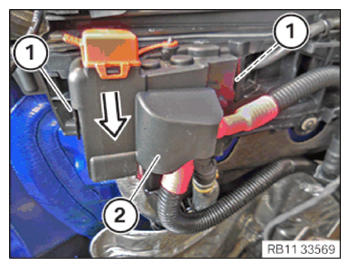

• Feed in and install the cover (2) in arrow direction.

  The locks (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE LAMBDA OXYGEN SENSOR FOR THE CYLINDERS 4 TO 6 .
• Refer to INSTALLING THE HOLDER OF THE POSITIVE BATTERY CABLE .
• Refer to PARTIALLY INSTALLING THE COOLANT EXPANSION TANK OF THE HIGH-TEMPERATURE COOLANT CIRCUIT .
• Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING (FRONT-END STRUT REMOVED) .
• Refer to INSTALLING THE FRONT-END STRUT .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING THE STRUT BRACE .
• Refer to INSTALLING THE FRONT HOOD SEAL .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
