Removing the front-end strut
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.

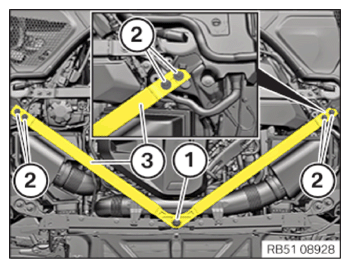

- Loosen screw (1).
- Release nuts (2).
- Remove the front-end strut (3).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
