Installing the cover on the inside of the window frame

• If applicable, connect and lock the connector of the loudspeaker

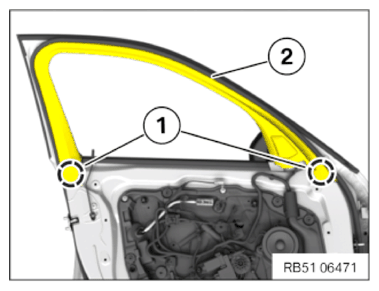

• Feed in and correctly position the cover on the inner window frame (2) all around starting from the rear
• Clip in clips (1)

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert the cover on the inner window frame (1) into the gap of the rubber window seal (2)

  Ensure the correct position of the

  cover on the inner window frame (1) on the door weather strip

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING DOOR TRIM PANEL .
