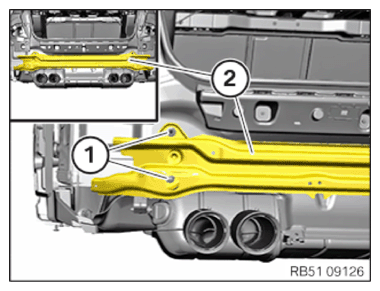

Installing rear bumper cover supports

• Install the support for the bumper cover (2)
• Tighten the nuts (1)
  TIGHTENING TORQUES SPECIFICATION



  Support on impact plate
  hexagon nut M12	Tightening torque	108 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

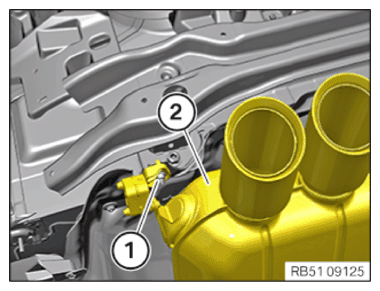

• Install rear silencer (2)
• Tighten nut (1)
  TIGHTENING TORQUES SPECIFICATION



  Rear silencer on support
  M8 hexagon nut	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR BUMPER COVER .
• Refer to INSTALLING THE TAIL LIGHT ON THE LEFT AND RIGHT SIDE PANELS .
• Refer to INSTALLING THE TRIM IN THE WATER CHANNEL ON THE LEFT AND RIGHT .
• Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL LEFT AND RIGHT PARTIALLY .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
