Adjust the lower part of the tailgate lock lower section

Check

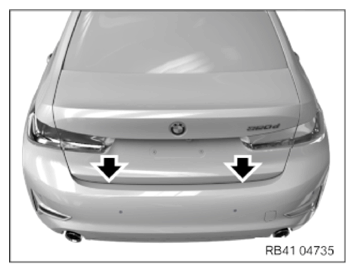

• Check the gap dimensions between the trunk lid and bumper cover (arrows)

  Courtesy of BMW OF NORTH AMERICA, INC.

Gap dimension trunk lid to rear bumper panel
1 trunk lid; 2 rear bumper panel Courtesy of BMW OF NORTH AMERICA, INC.	a  5.1+1.8-1.8 mm

Result

» Gap dimension does not correspond to the specification

Measure

• Adjusting tailgate lock

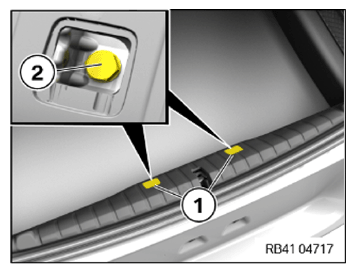

• Lever out the covers (1) with a suitable screwdriver and remove
• Loosen screws (2) until the tailgate lock can be shifted
• Adjust the trunk lid lock in such a way that the tailgate has the predefined gap dimension to the bumper cover

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (2)
  TIGHTENING TORQUES SPECIFICATION



  Tailgate lock to body
  Hexagon screw M8x20	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install and clip in the covers (1)

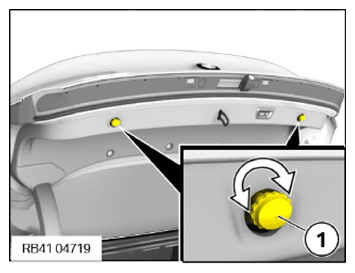

• Adjust the stop pad (1) by twisting in arrow directions

  Courtesy of BMW OF NORTH AMERICA, INC.
