Install outer window channel strip

• Check the outer door well cover (1) for damage, replace if necessary
• Coat the outer window channel strip (1) with a suitable lubricant prior to installation

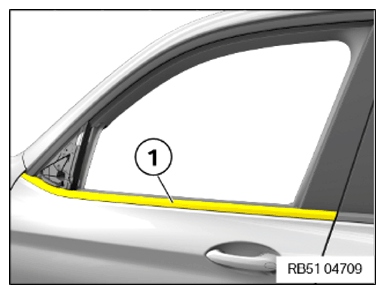

• Position the outer window channel strip (1) on the door at front
• Press the outer door well cover (1) over the entire length

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE OUTSIDE REARVIEW MIRROR .
• Refer to PARTIALLY INSTALLING THE COVER ON THE INSIDE OF THE WINDOW FRAME .
• Refer to INSTALLING DOOR TRIM PANEL .
