Installing C-pillar trim panel

Check

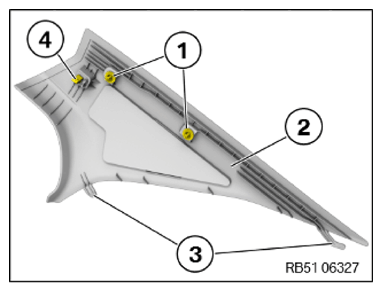

• Check the clips (1) and the clamp (4) for damage and replace if necessary
• Check guides (3) for damage

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The guide is damaged

Measure

• Replace the C-pillar trim panel

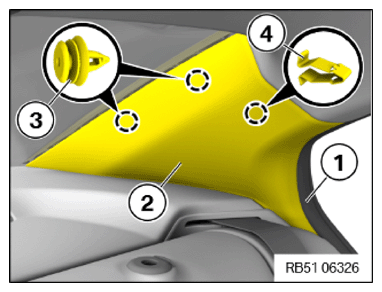

• Thread in C-pillar trim panel (2) in the guides to the rear
• Clip in clips (3)
• Clip in clamp (4)
• Feed in the C-pillar trim panel (2) under the lip of edge protection (1)

Courtesy of BMW OF NORTH AMERICA, INC.
