Lights -- Repair -- M3 (G80)
>>
63 25 Center High-Mounted Stop Lamp
>>
63 25 003 Removing and installing center high-mounted brake light (M3 base, M3 Competition, M3 Competition M xDrive, M3 CS)
>>
Removing the brake light (CHMSL)
Removing the brake light (CHMSL)
Preliminary work
Refer to
TRIM OF THE 3RD BRAKE LIGHT
.

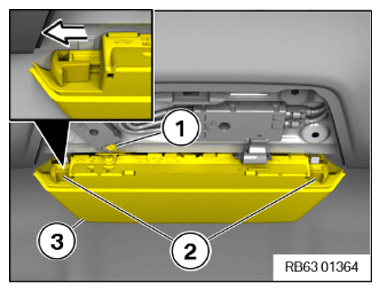

Unlock plug connection
(1)
and disconnect
Unlock both slides
(2)
outwards in arrow direction and remove the 3rd brake light
(3)
Courtesy of BMW OF NORTH AMERICA, INC.
