Installing expanding foam tape on the windshield

Observe marks (A) and (B) for the expanding foam tape on the windshield
If marks are missing, take the dimensions from the removed windshield

Courtesy of BMW OF NORTH AMERICA, INC.

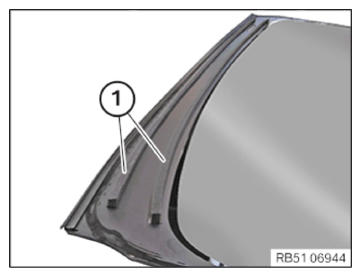

Clean the adhesive areas of the expanding foam tape (1) on the windshield
CONSUMABLE SPECIFICATION

Cleaning agent R1 100 ml, Bottle 83192211217
Apply the expanding foam tape (1) within the marks on the windshield and press it on
Parts: Expanding foam tape

Courtesy of BMW OF NORTH AMERICA, INC.
