(Removing the b-pillar trim panel at the bottom left and right)
NOTE:
Description is for left component only. Procedure on the right side is identical
Remove the lower B-pillar trim panel

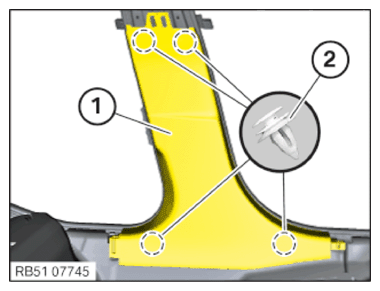

- Unclip the B-pillar trim panel (1) with the special tool 0 496 569 (00 9 325) on the clips (2)
- Feed out and remove the B-pillar trim panel (1) at the lip of the edge protection at front and rear
