Installing the clean air pipe for cylinders 4-6

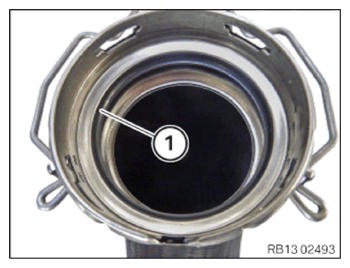

• Check seal (1) for damage, replace if necessary

  Courtesy of BMW OF NORTH AMERICA, INC.

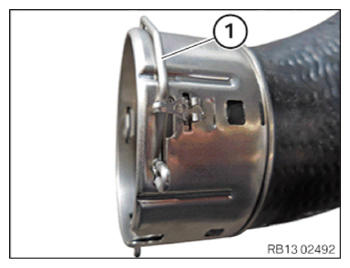

• Lock clamp (1)

  Courtesy of BMW OF NORTH AMERICA, INC.

• Guide in and install clean air pipe (2) for cylinders 4-6
• Ensure that clamp (1) locks audibly

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
