Body Equipment -- Repair (2 Of 2) -- M3 (G80)
>>
51 71 Gaskets And Loose Body Parts
>>
51 71 017 Removing and installing/replacing left underbody protection (M3 base, M3 Competition, M3 Competition M xDrive, M3 CS)
>>
Installing the undershield on the sides
Installing the undershield on the sides

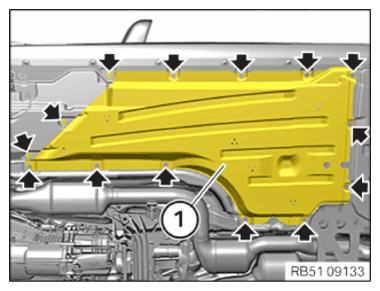

Insert the undershield (1)
Tighten all bolts and nuts (arrows)
TIGHTENING TORQUES SPECIFICATION
Undershield
screw
Tightening torque
2.6 Nm
Plastic nut
Tightening torque
2.6 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
