Removing right luggage compartment wheel arch trim panel

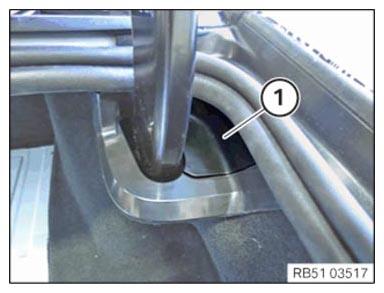

• Remove the cover (1)  towards the top.

  Courtesy of BMW OF NORTH AMERICA, INC.

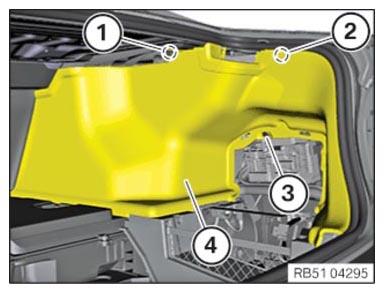

• Loosen expanding rivet (1)  .
• Release the luggage compartment wheel arch trim panel (4)  from the clip (2)  .
• Detach emergency release (3)  .
• Remove the luggage compartment wheel arch trim panel (4)  .

Courtesy of BMW OF NORTH AMERICA, INC.
