Removing and installing/replacing switch for unlocking tailgate (330i xDrive Wagon, 328d xDrive Wagon, 330i GT xDrive, 340i GT xDrive)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 323

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Graphic similar!

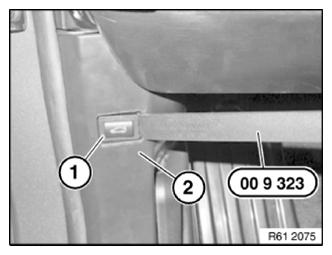

Lever switch for tailgate unlocking (1) sideways out of A-pillar trim panel (2) using special tool 00 9 323.

Disconnect associated plug connection and remove switch for unlocking rear lid (1).
