61 13... Socket housings, 5-pin, 8-pin, System MQS/MPQ (330i xDrive Wagon, 328d xDrive Wagon, 330i GT xDrive, 340i GT xDrive)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Manufactured by AMP: The following contact types without single conductor seal can be fitted in the connector housings:

MQS (Micro Quadlock System)
MPQ, width 2.8 mm (Micro Power Quadlock)
MPQ, width 5.2 mm (Micro Power Quadlock)

Courtesy of BMW OF NORTH AMERICA, INC.

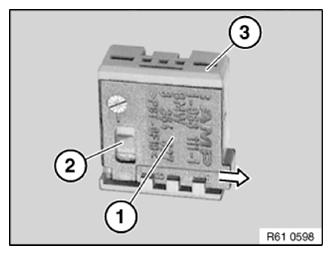

Socket housing, 5-pin (Hybrid System MQS/MPQ)

Raise fastener (1) over snap-in lug (2) and detach from contact carrier (3).

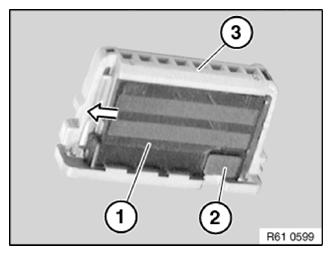

Socket housing, 8-pin (MQS):

Raise fastener (1) over snap-in lug (2) and detach from contact carrier (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

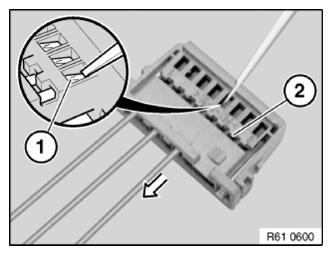

Hold down snap-in hooks (1) of contact and pull cable with contact as far as secondary lock (2).

Courtesy of BMW OF NORTH AMERICA, INC.

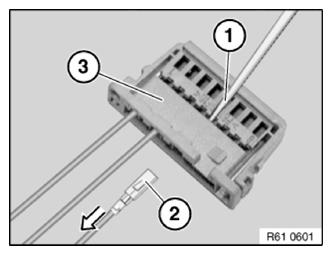

Hold down snap-in hooks in secondary lock (1) again and pull cable with contact (2) completely out of contact carrier (3).
