61 13... Socket housings, 2x21-, 2x27-pin, Hybrid Systems MQS/MPQ, Elo/Elo Power (330i xDrive Wagon, 328d xDrive Wagon, 330i GT xDrive, 340i GT xDrive)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Manufactured by AMP: The following bushing housing types without single conductor seal can be fitted into the socket housings:
- MQS (Micro Quadlock System)
- MPQ, width 2.8 mm (Micro Power Quadlock)
- MPQ, width 5.2 mm (Micro Power Quadlock)
Manufactured by Siemens: The following bushing housing types without single conductor seal can be fitted into the socket housings:
- Elo (electrical contact)
- Elo Power 2.8 mm width (electrical contact for heavy loads)
- Elo Power 5.2 mm width (electrical contact for heavy loads)

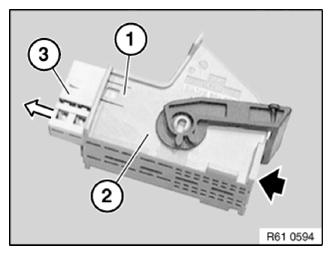

Raise lock (1) on housing (2).
Push contact carrier (3) from rear out of housing.
NOTE:
The second contact carrier is pushed out in the same way.
Pushing out the contact carrier releases the secondary locks of the socket contacts.
Pushing out the contact carrier releases the secondary locks of the socket contacts.

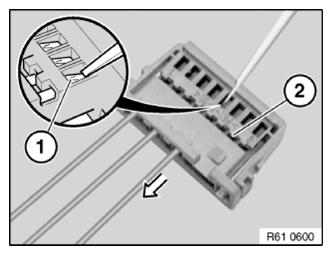

Hold down snap-in hooks (1) of contact bushing in opening of contact carrier with a small screwdriver.
Pull wire with contact bushing in arrow direction as far as secondary lock (2).

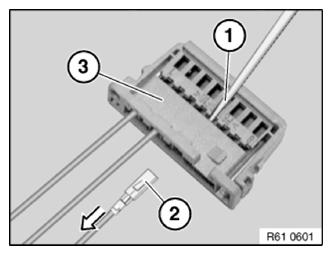

Hold down snap-in hooks in secondary lock (1) again and pull cable with contact bushing (2) completely out of contact carrier (3).
