61 13... Socket housing 42-, 43-, 46-pin, Hybrid System MQS/MPQ (330i xDrive Wagon, 328d xDrive Wagon, 330i GT xDrive, 340i GT xDrive)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 61 0 312
Manufactured by AMP: The following bushing housings without single conductor seal can be fitted in the socket housings:
- MQS (Micro Quadlock System)
- MPQ, width 2.8 mm (Micro Power Quadlock)
- MPQ, width 5.2 mm (Micro Power Quadlock)

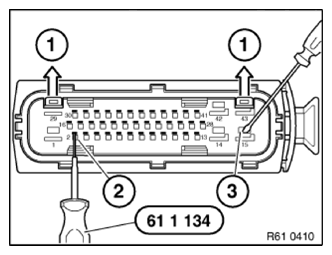

Open secondary locks (1) on socket housing.
Press back safety catch of MQS contacts (2) with special tool 61 0 312 61 1 134 and pull out cable with contact.
Press back safety catch of MPQ contacts (3) with screwdriver and pull out cable with contact.
Installation note:
Bend open safety catch of contacts gently before inserting into connector housing .

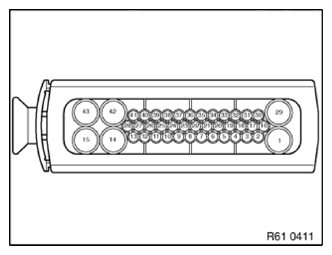

For installation of contacts, observe chamber numbers on reverse side of socket housing.
