61 13... In-line plugs, 6 - to 50-pin, System Elo (330i xDrive Wagon, 328d xDrive Wagon, 330i GT xDrive, 340i GT xDrive)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

G14171433

Courtesy of BMW OF NORTH AMERICA, INC.

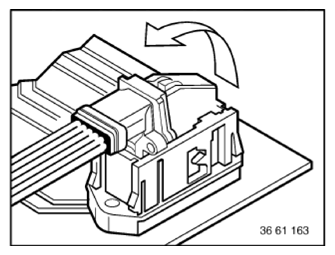

Open lock.

G14171434

Courtesy of BMW OF NORTH AMERICA, INC.

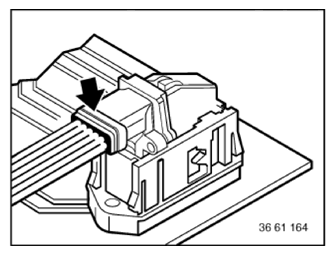

Detach cable tie.

Installation note:

Cable tie must be reinstalled.

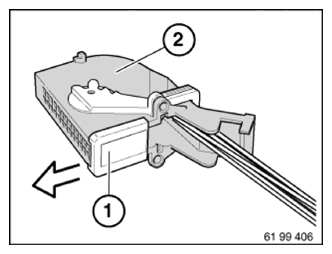

Detach catch (1) from connector housing (2).

G14171435

Courtesy of BMW OF NORTH AMERICA, INC.

G14171436

Courtesy of BMW OF NORTH AMERICA, INC.

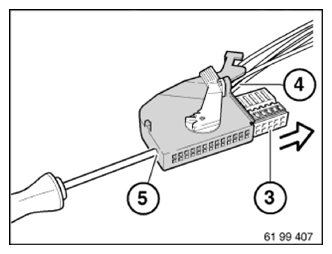

Press out contact carrier (3) with wiring harness (4) through opening (5).

G14171437

Courtesy of BMW OF NORTH AMERICA, INC.

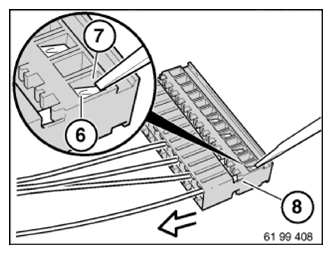

Hold down safety catch (6) of defective contact and pull cable and contact up to secondary lock (8).

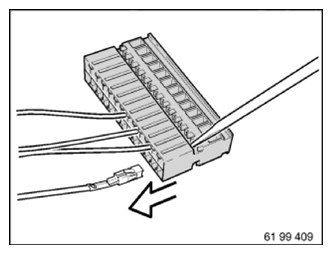

Hold down safety catch once again in secondary lock (8) and pull cable and contact completely out of contact carrier.

G14171438

Courtesy of BMW OF NORTH AMERICA, INC.
