61 13... In-line plugs, 2-pin, System JPT ELA (330i xDrive Wagon, 328d xDrive Wagon, 330i GT xDrive, 340i GT xDrive)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 0 316

Courtesy of BMW OF NORTH AMERICA, INC.

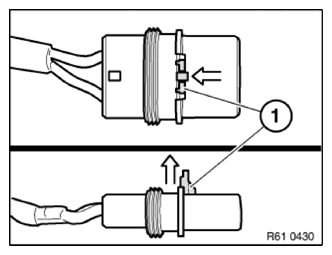

Press locking mechanism (1) in arrow direction and slide connector forward.

Courtesy of BMW OF NORTH AMERICA, INC.

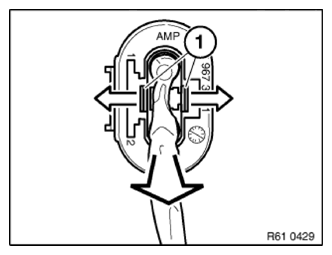

Press lock (1) downward and slide out to one side.

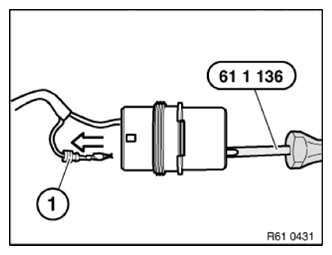

With special tool 61 0 316 (61 1 136), unlock contact and pull out cable with contact (1) towards rear.

Courtesy of BMW OF NORTH AMERICA, INC.
