61 13... Control unit plugs, 25-, 35-, 55-, 83-, 88-pin (330i xDrive Wagon, 328d xDrive Wagon, 330i GT xDrive, 340i GT xDrive)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 61 0 312
- 61 0 314
- 61 0 315
- 61 0 323

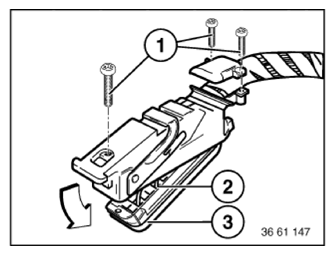

Unscrew the screws (1).
Lever out pin sensor (2) with gasket (3) in arrow direction.
Remove gasket (3).

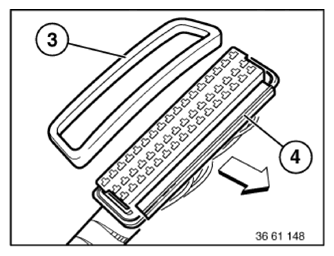

Pull out housing lock (4) in arrow direction and unlock.

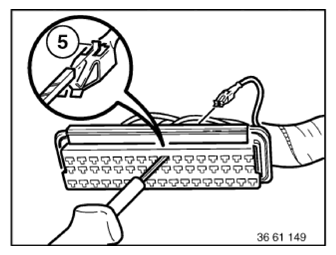

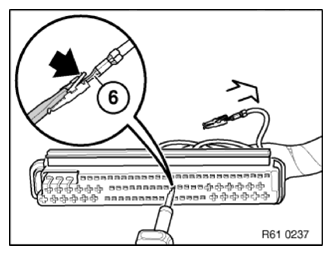

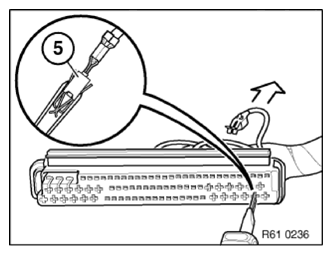

Press down snap-in hooks (5) of corresponding contact and pull out cable with contact.
Special tool 61 0 312 (61 1 134) for mini flat spring contacts.
Special tool 61 0 314 (61 1 135) for mini flat spring contacts.
Special tool 61 0 315 (61 1 151) for double flat spring contacts (dual snap-in hooks).
Special tool 61 0 323 (61 1 152) for double flat spring contacts (special snap-in hooks).
