61 13... Circular connector, 13-pin, system D2.5 (330i xDrive Wagon, 328d xDrive Wagon, 330i GT xDrive, 340i GT xDrive)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 61 0 303

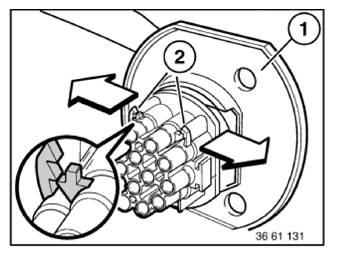

Detach rubber grommet (1).
Carefully pull out locking mechanism (2) in arrow direction.

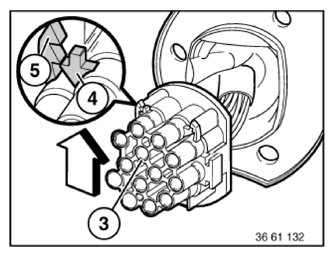

Shift lower section of connector (3) in arrow direction until retaining lugs (4) snap into release groove (5).

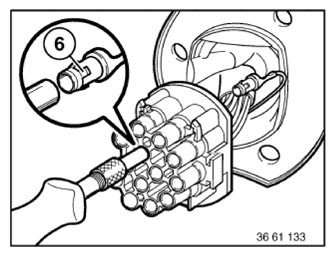

With special tool 61 0 303, press down retaining lugs (6) of corresponding contact and pull out cable.
