Remove luggage compartment floor covering

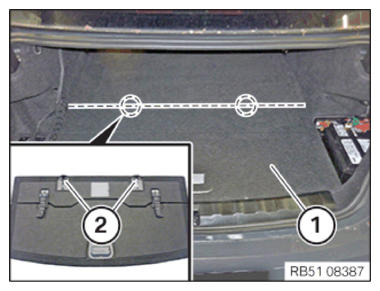

Remove the rear luggage compartment floor covering

• Disengage luggage compartment floor covering (1) in the area of the dotted line from the detents (2) upward.
• Lift the luggage compartment floor covering (1) at the rear handle and remove from vehicle.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove front luggage compartment floor covering

• Fold up the rear seat backrest.
• Loosen the expanding rivet (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen the expanding rivet (1).
• Lift the luggage compartment floor covering (2) and remove it from the vehicle.

Courtesy of BMW OF NORTH AMERICA, INC.
