Installing the cover for center engine compartment

Check

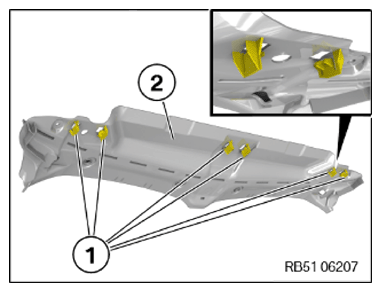

• Check the detents (1)  of the cover (2)  for damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » Detents (1)  are damaged.

  Measure

  • Replace the cover (2)  .

  Parts:  cover panel

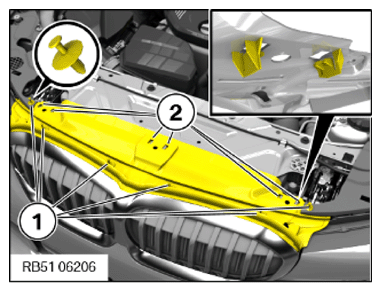

• Insert and position the cover from the rear.
• Clip in the detents (2)  .
• Mount all the expanding rivets (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALL THE FRONT HOOD SEAL .
