Installing the acoustic cover for the oil sump

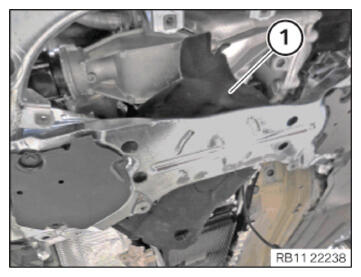

• Thread in and position the acoustic cover (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

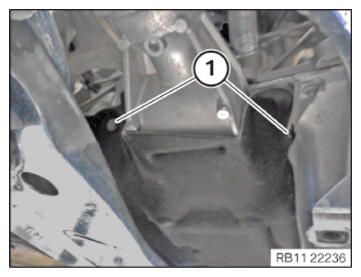

• Secure expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Check the Christmas tree clip (1) for damage, replace if necessary.

  Parts:  Fir tree clip

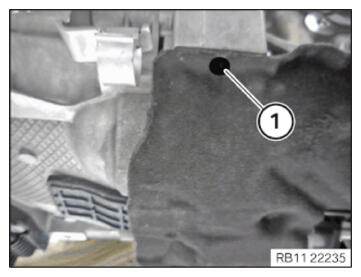

• Secure the fir tree clip (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

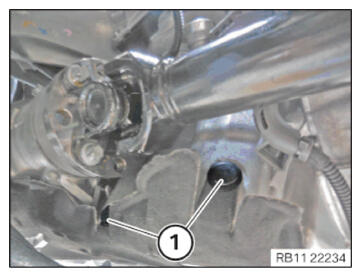

• Secure expanding rivet (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

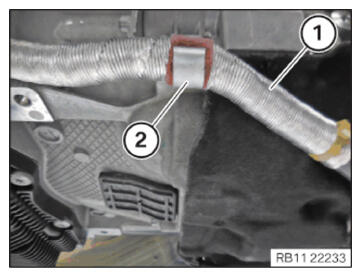

• Secure positive battery cable (1) at the clamp (2).

Courtesy of BMW OF NORTH AMERICA, INC.

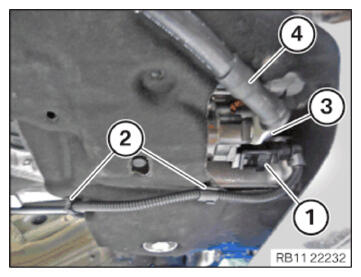

• Connect connectors (1) and lock.

  The connector (1) must engage audibly.

• Secure clamps (2).
• Insert and install the positive battery cable (4).
• Tighten the nut (3) hand-tight.

Courtesy of BMW OF NORTH AMERICA, INC.

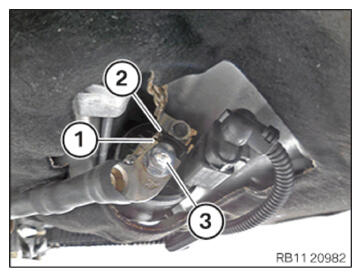

• Attach the positive battery cable (1) correctly  to anti-twist lock (2).
• Tighten nut (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
• Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to ACTIVATING ELECTRICAL SYSTEM .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
