Removing left fold-out compartment

Precondition

Fold-out compartment is open.

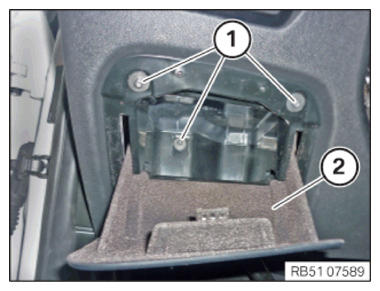

Loosen screws (1).
Remove the fold-down compartment (2) toward the bottom.

Courtesy of BMW OF NORTH AMERICA, INC.
