Install center armrest

• Feed in the center armrest into the center console and position correctly.

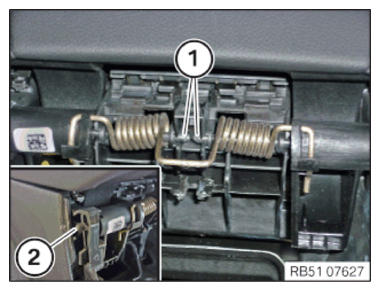

• Insert the pins (1) and slide them into the center console with the gearing (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

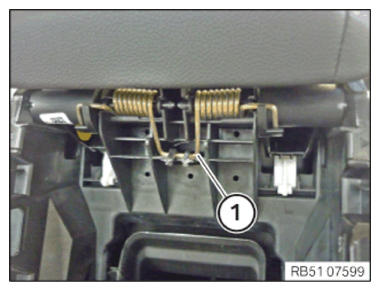

• Open the center armrest so that the spring (1) is released.
• Use a pair of long-nose pliers to lift the spring (1) over the snap-in lugs and hang it in place.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
