Remove cup holder

Precondition

• Lid of front storage compartment is open.

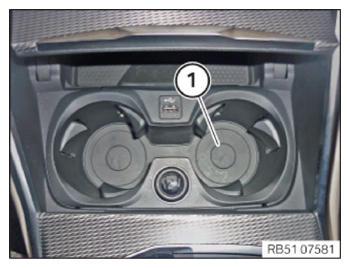

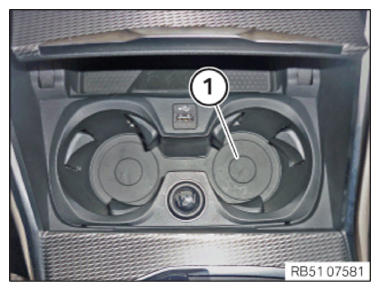

• Remove the insert (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

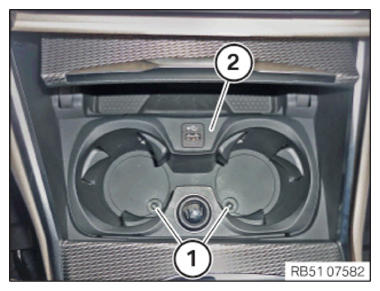

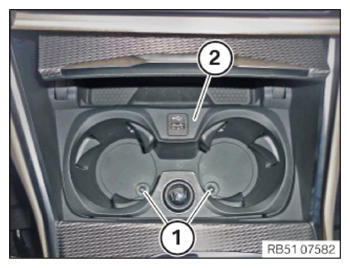

• Loosen screws (1).
• Feed the cup holder (2) out to the top.
• Unlock associated plug connections and disconnect.

  Courtesy of BMW OF NORTH AMERICA, INC.
