Remount front light electronics control unit

Remove the control unit for front light electronics (FLEL)

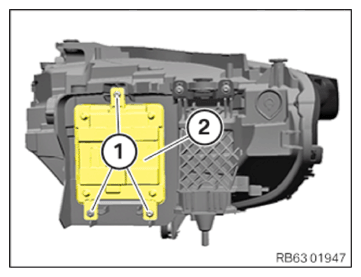

Loosen screws (1).
Feed out the control unit for front light electronics (FLEL) (2).

Courtesy of BMW OF NORTH AMERICA, INC.

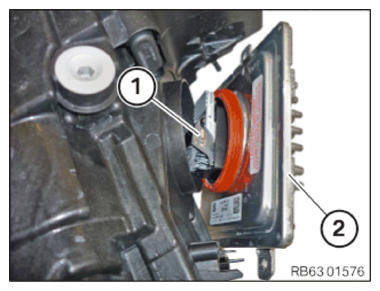

Unlock plug connection (1) and disconnect.
Remove the control unit for front light electronics (FLEL) (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installing Frontal Light Electronics

(FLEL) control unit

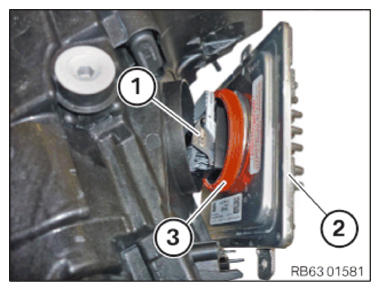

Check the seal (3) for damage and, if necessary, replace it.
Position the Front Light Electronics (FLEL) control unit (2).
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in the Front Light Electronics (FLEL) control unit (2) and correctly position.
Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Front Light Electronics control unit on headlight
Screw	tightening torque	1.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
