Installing underbody protection at rear

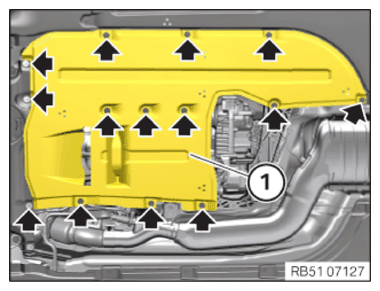

Version A:

Feed in rear underbody protection (1) and install.

Tighten screws (arrows).

TIGHTENING TORQUE SPECIFICATION

Underbody protection
Hexagon screw	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

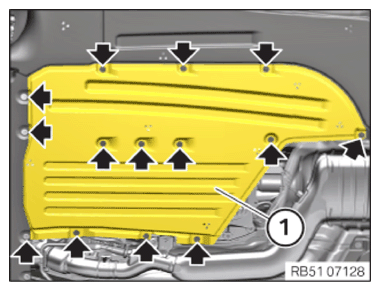

Version B:

Feed in rear underbody protection (1) and install.

Tighten screws (arrows).

TIGHTENING TORQUE SPECIFICATION

Underbody protection
Hexagon screw	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
