Replacing the rear side trim panel

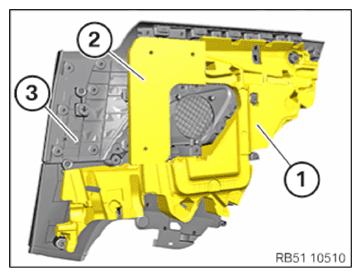

- Carefully release the absorber (1) at all retaining lugs and remove it.
- Carefully release the acoustic fleece (2) at all retaining lugs and remove it.
- Replace the side trim panel (3)
.
Parts: Side trim panel
- Install the acoustic fleece (2) and fasten it to all retaining lugs.
- Install absorber (1)
and fasten it to all retaining lugs.
