Installing the guide for the rear bumper cover at the side

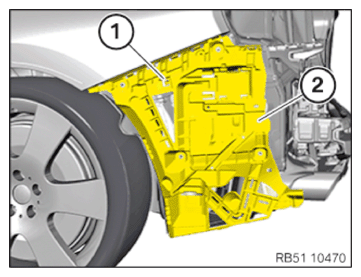

• Position guide (2)  .

  The lock (1)  must engage audibly.

• If necessary, clip in the available cable bracket.

  Courtesy of BMW OF NORTH AMERICA, INC.

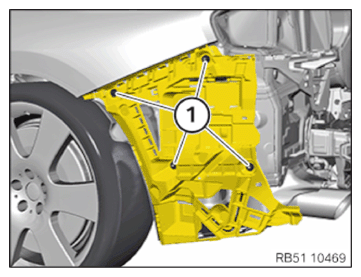

• Tighten nuts (1)  .
  TIGHTENING TORQUE SPECIFICATION



  Guide lateral support on body
  Combination hexagon nut	tightening torque	4.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to IF INSTALLED: INSTALLING THE EMERGENCY HORN (ADDITIONAL WORK ON ANTI-THEFT ALARM SYSTEM) .
• Refer to IF INSTALLED: INSTALLING THE LANE CHANGE WARNING SENSOR .
• Refer to INSTALLING THE REAR BUMPER COVER .
• Refer to INSTALLING TAIL LIGHT ON LEFT AND RIGHT SIDE PANEL .
• Refer to INSTALLING THE TRIM IN THE WATER CHANNEL ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE LEFT AND RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL (PARTIALLY REMOVED) .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
