Installing the trim on the rear bumper cover

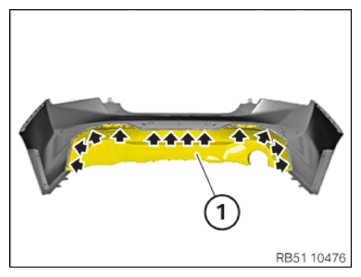

• Position trim (1)  and clip it into the bumper cover in the detents (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR BUMPER COVER .
• Refer to INSTALLING TAIL LIGHT ON LEFT AND RIGHT SIDE PANEL .
• Refer to INSTALLING THE TRIM IN THE WATER CHANNEL ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE LEFT AND RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL (PARTIALLY REMOVED) .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
