Installing the support for the bumper cover

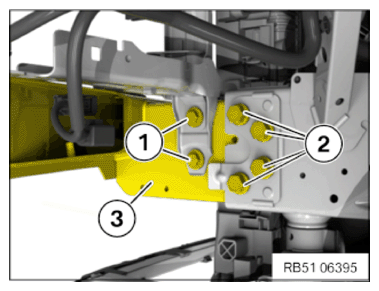

• Feed in the support for the bumper cover (3) from the front.

  If necessary, connect any present connectors.

• Replace screws (2).

  Parts:  Screws

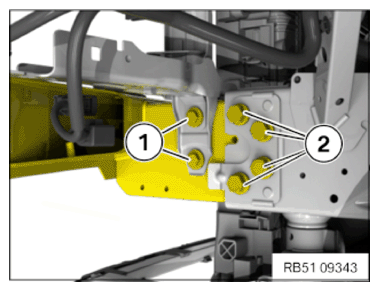

• Position the screws (2) and hand-tighten them.
• Position the screws (1) and hand-tighten them.

  Courtesy of BMW OF NORTH AMERICA, INC.

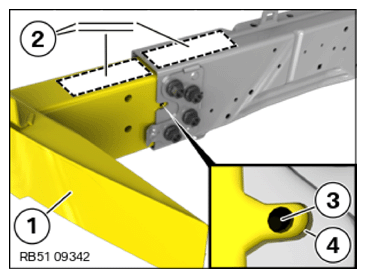

• Position the support (1) so that the bore (3) is in the center to the recess (4).

  The surfaces (2) must be parallel to each other while doing so.

• Position the support (1) so that the surfaces (2) are parallel to each other.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screws (2).
• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATION



  Vertical connection to deformation element
  Hexagon screw	Tightening torque	21 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  The setpoint torque deviates from the adjustable torque when using special tool 2 464 950.
  NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Convert setpoint torque into adjustable torque:

  (setpoint torque * L1)/L2 = adjustable torque

  L1 = length from the center of the grip to the reversible ratchet head

  L2 = length from the center of the grip to the center point of the ring on the special tool

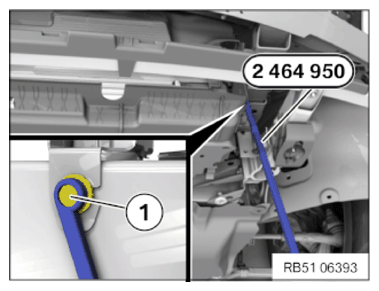

• Tighten the screw (1) with the special tool 2 464 950  and the torque wrench.

  The special tool and torque wrench must be aligned with tightening the screw.

  TIGHTENING TORQUE SPECIFICATION



  Vertical connection to deformation element
  Hexagon screw	Setpoint torque	21 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING SUPPORT FOR BUMPER COVER AT FRONT BOTTOM .
• Refer to FASTENING THE AIR DUCT FOR THE COOLANT RADIATOR TO THE SUPPORT FOR THE BUMPER COVER .
• Refer to INSTALLING INTAKE PORT .
• Refer to INSTALLING INTAKE FILTER HOUSING .
• Refer to INSTALLING LEFT AND RIGHT BRAKE VENTILATION DUCT .
• Refer to INSTALLING REINFORCEMENT STRUT .
• Refer to INSTALLING THE LEFT AND RIGHT FANFARE HORN .
• Refer to INSTALLING THE BOTTOM AUTOMATIC AIR FLAP CONTROL .
• Refer to INSTALLING THE IMPACT ABSORBER .
• Refer to ACTIVATING ELECTRICAL SYSTEM .
• Refer to IF INSTALLED: INSTALLING THE FRONT RADAR SENSOR (FRS) WITH THE BRACKET .
• Refer to INSERTING TOP AUTOMATIC AIR FLAP CONTROL .
• Refer to INSTALLING THE FRONT BUMPER COVER .
• Refer to PARTIALLY INSTALLING THE TEMPERATURE SENSOR .
• Refer to INSTALLING FRONT WHEEL ARCH TRIM PANEL ON THE LEFT AND RIGHT (PARTIALLY REMOVED) .
• Refer to INSTALLING COVERS AT FRONT BOTTOM ON LEFT AN RIGHT SIDES .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING THE COVER FOR CENTRAL ENGINE COMPARTMENT .
• Refer to INSTALLING THE FRONT HOOD SEAL .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
• Refer to ADJUSTING HEADLIGHTS .
