41 61 014 Hood Adjustment
Observe BODY GAP DIMENSIONS REP-REP-RAI0141-4106200 - V.2 .
IMPORTANT:
Do not damage adjoining body parts!
Setting the engine compartment lid laterally and in longitudinal direction:
Loosen screws (1) on hinges on left and right and adjust hood.
Tightening torque 41 61 1AZ .
Setting height of engine compartment lid:
Remove TRIM ON SIDE PANEL .

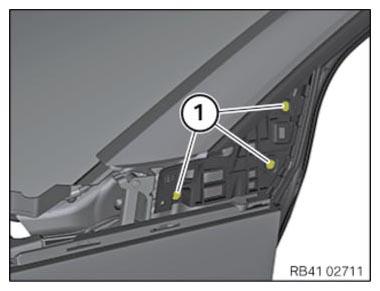

Unscrew the screws (1).

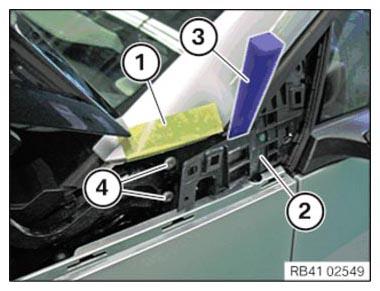

Mask off the edge of the trim with adhesive tape (1).
Slightly pull strip (2) outward and secure with a wedge.
Loosen screws (4) and adjust hood.
Tightening torque 41 61 2AZ .
NOTE:

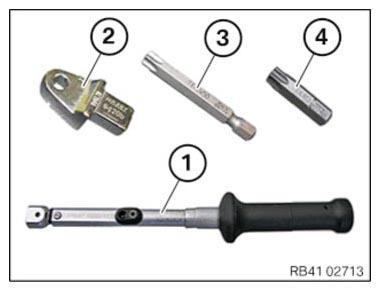

The following tools are recommended to tighten the hinge.
| (1) | Torque wrench Hazet 6290-1 CT | |
| (2) | Insert Hazet 6420b | |
| (3) | Insert T40x50 | for upper screw |
| (4) | Use T40 | for lower screw |

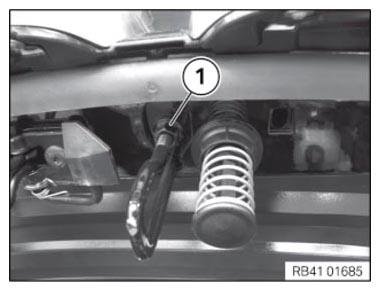

Height adjustment on striker:
Adjust height by turning nut (1).
Height adjustment of engine compartment lid to side panel by means of STOP PAD .
NOTE:
The engine compartment lid is correctly adjusted in the front section by a combination of pulling the strikers and pressing the stop pads.
Incorrect adjustment results in either flutter of the hood or sluggish unlocking.
Incorrect adjustment results in either flutter of the hood or sluggish unlocking.
IMPORTANT:
Check function of safety catch.
After Installation note:
- Tighten all screws and nuts to specified torque.
- Touch up unpainted surfaces in the appropriate color.
- If necessary, adjust side panels.
