51 14 000 Remove and install/replace front BMW nameplate

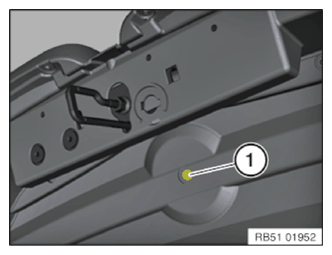

Remove screw (1).
Remove plate from engine compartment lid.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Installation note:

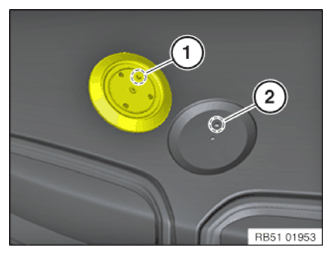

Guide pin (1) must be correctly seated in corresponding opening (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
