65 13 060 Removing and installing/replacing loudspeaker (mid-range speaker, in dashboard)
Special tools required:
- 00 9 327

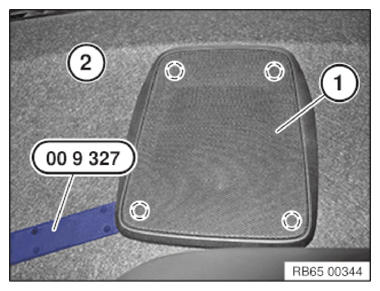

Unclip trim (1) with special tool 00 9 327 from detents and remove upwards.
Installation note:

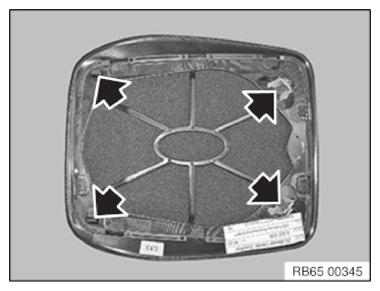

Retaining lugs and clamps at marked points must not be damaged.

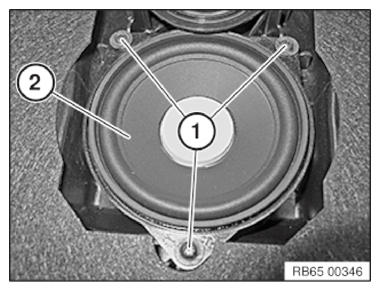

Unscrew the screws (1).
Tightening torque 65 13 04AZ .
Remove mid-range speaker (2) upwards from dashboard.
Disconnect plug connections underneath.
Remove mid-range speaker (2).
