61 31 342 Removing and installing/replacing gear selector switch
WARNING:
High-voltage system - mortal hazard!
The following points must be strictly observed prior to starting work:
DE-ENERGIZE THE HIGH-VOLTAGE SYSTEM
Observe SAFETY INSTRUCTIONS ON HANDLING HYBRID OR ELECTRIC VEHICLES
The following points must be strictly observed prior to starting work:
DE-ENERGIZE THE HIGH-VOLTAGE SYSTEM
Observe SAFETY INSTRUCTIONS ON HANDLING HYBRID OR ELECTRIC VEHICLES
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .
Preliminary work needed:
- Refer to CLAMPING OFF BATTERY LEAD FROM NEGATIVE CONNECTION POINT .
- Refer to REMOVING STEERING COLUMN CONTROL PANEL .

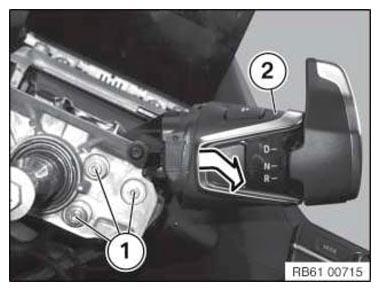

Unscrew the screws (1).
Tightening torque 61 31 1AZ .
Remove gear selector switch (2) in arrow direction.

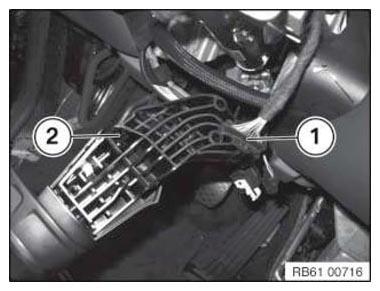

Unlock and disconnect plug connection (1) at gear selector switch (2).
Replacement:
Carry out VEHICLE PROGRAMMING/CODING .
